YMHLN Series of Corn Peeler and Polisher Machine

  • YMHLN Series of Corn Peeler and Polisher Machine

Short Description:

Win Tone YMHLN series of corn peeler and polisher machine mainly has corn peeling, wheat peeling and paddy peeling and polishing functions. It includes four large or small models.


Product Detail

Production Case

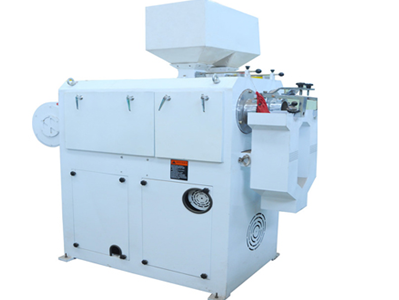

Corn Peeler and Polisher Machine.png

YMHLN corn peeler and polisher machine usage:

1.Corn peeling, wheat peeling, paddy and sorghum peeling.
2.Suitable for food processing factories in corn, wheat and sorghum peeling.

Working principle and features:
Win Tone YMHLN series of corn peeler and polisher machine mainly has corn peeling, wheat peeling and paddy peeling and polishing functions. It includes four large or small models. The machine can process 1000-6000kg of corn, wheat, sorghum and paddy per hour.

After cleaning up, the unprocessed corn enters into the peeling chamber of YMHLN corn peeler and polisher machine through feeding port. By control the feeding speed at the feeding port and the pressure of the pressure valve, we make the peeling chamber have some pressure. The machine squeezes, peels, degerminates, removes impurities and polishes the material between the rotary roller and the screen. And under the pneumatic effect, the corn kernels and the bran separate automatically and then we can get qualified corn kernels. The machine is internally installed efficient air suction chamber which can remove the skin and impurities from the peeling process.

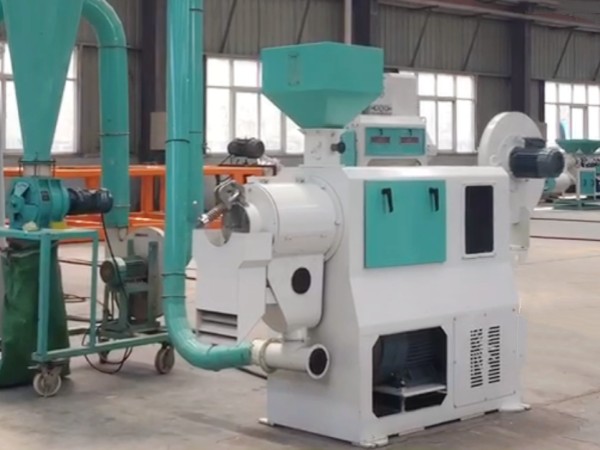

corn peeler and polisher machine.jpg



YMHLN series of corn peeler and polisher machine can remove corn skin, impurities and corn germs effectively and make the corn surface smooth and bright.
Internally installed efficient winnowing and dust removing blower.
The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.

Technical parameter:

Model

Yield

Power

Spindle speed

Blower speed

Weight

Outline dimension

(kg/h)

(kg)

r/min

r/min

(kg)

mm

YMHLN-115

1000-1500

15

940-1000

4200-4400

240

1050×1020×1150

YMHLN-150

1500-2000

18.5-22

940-1000

3000-3050

320

1189×1020×1430

YMHLN-200

2000-2500

22-30

940-1000

3000-3100

360

1313×1020×1440

JLSM-30/60

3000-6000

37-45

940-1000

2900

1400

1990×855×2000
