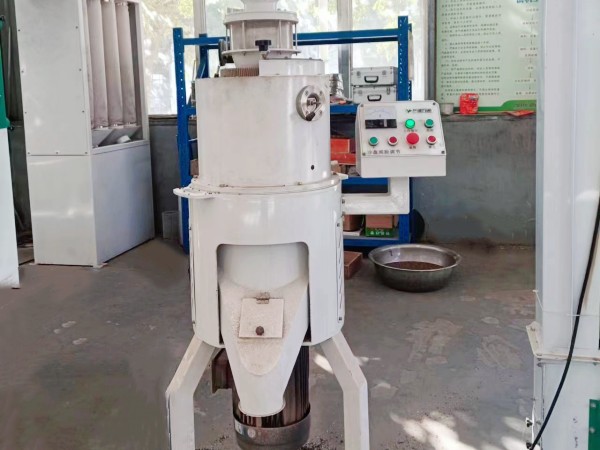

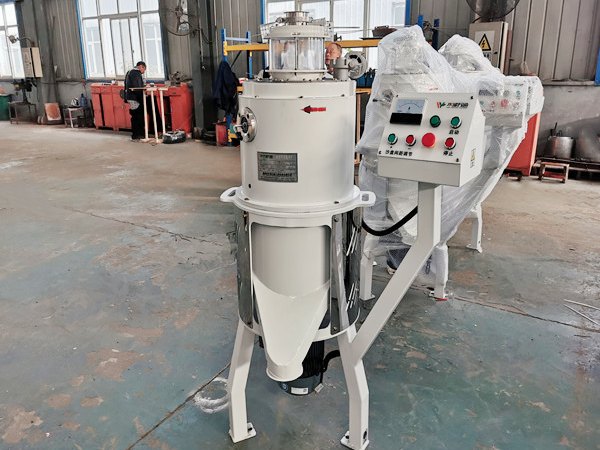

QMJ-300D buckwheat shelling machine

  • QMJ-300D buckwheat shelling machine

Short Description:

High peeling rate and low breakage rate

Optional capacity, low power.

Application in buckwheat and peony seeds


Product Detail

Production Case

 Application:

  The buckwheat dehulling machine is mainly used for the shelling of sweet buckwheat and tartary buckwheat. It is suitable for large, medium and small buckwheat processing factory. It also can be used alone or the whole production line.

  Features and Advantages:

  This machine solves some main problems of low hulling rate, low whole rice rate, high broken, insufficient wheat grains, and low yield during the buckwheat processing.

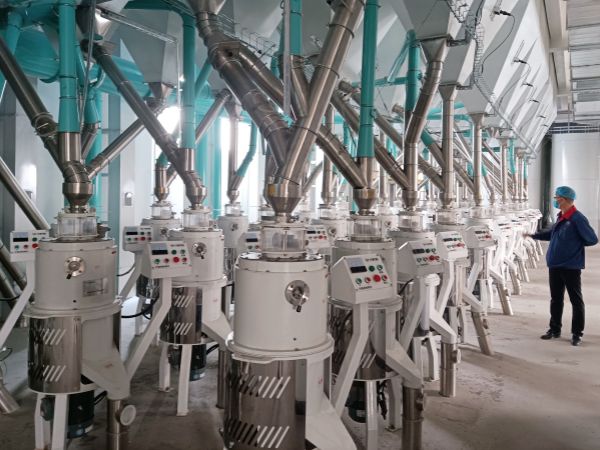

  It is equipped with large and medium-sized complete buckwheat processing equipment, which is convenient for process layout.

  Technical Aavantages:

  1. Direct-connected drive motor: reduce the force of the bearing and increase the service life of the bearing shaft.The sand disc will run smoothly;

  2. Simple operation: electric adjustment of sand disc gap,  improved electric control with self-locking function, easy operation.

  3. Frequency conversion speed regulation: During the shelling process, the spindle speed can be adjusted to achieve the effect of the highest shelling rate and reduce the crushing rate;

  4. Patent product: Super hard diamond sanding disc, which is more than 5 times the service life of traditional sanding discs.

  Working Process:

  1. The raw materials of buckwheat must be cleaned and classified before shelling. The soil, stones, large impurities, small impurities, light impurities, etc., are removed from the raw materials by the multi-functional trash remover.

  2. After the cleaned buckwheat is moistened, it is lifted by the bucket elevator to the multifunctional grading sieve for grading, and then through the feeding device, it can enter the buckwheat hulling machine for dehulling processing.

  3. The dehulled buckwheat and hulls separated by air sieve cleaner vibrating grading sieve and pack them separately.

  Technical Parameters:

Model Capacity(kg/h) Power(kw) Emery Wheel Index Spindle Speed (r/min) Weight(kg) Dimension(L*W*H)mm
QMJ-300D 150 1.5 φ300*40 960 168 920*710*1556
QMJ-300Dx4 450 3*2 φ300*40 970 900 1180*12030*1670
