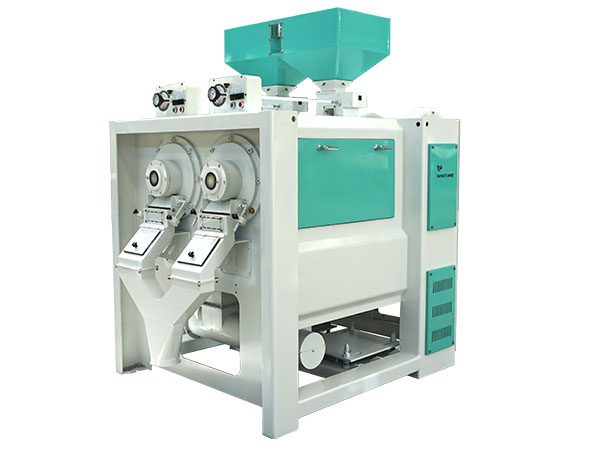

MTPS-R*2 Series Maize Peeling Machine

  • MTPS-R*2 Series Maize Peeling Machine

Short Description:

MTPS-25R*2 Series Maize Peeling Machine
1. Saving energy and occupy a small area;

2. Improving the separation efficiency of bran and impurities;

3. High output and peeliung rate:95%


Product Detail

Production Case

  Brief Introduction:

  The new designed MTPS corn sand roller peeling machine is the core product of WinTone Machinery in 2020. This series of maize peeling machine is the third generation of corn peeling equipment optimized and improved based on the prototype of FTP-600 peeling machine.

  Application:

  Used in corn processing enterprises and feed processing enterprises. In response to the feed enterprise's demand for large-scale corn peeling machines, a double body 12 t/h sand roller corn peeling machine was specially designed.

  Features and Function:

  1. New upgrade

  The Rui series is the optimized and improved third-generation corn peeling machine, which is composed of high-strength sand rollers and wear-resistant screens, equiped with an air spray system inner to improve the separation efficiency of bran and impurities;

  2. Large output

  Multiple models can cover the processing requirements of 1-6 tons / hour by one machine, specially 12 tons / hour corn peeling machine with double body;

  3. Easy to operate

  Adjustable ballast size as customers' required with high peeling rate.

  4. Low energy consumption

  One or two motors can save energy and occupy a small area;

  Technical Parameter:

Model

Capacity

(t/h)

Power

(kw)

Suction volume

(m³)

Wind pressure

(pa)

Peeling rate

(%)

Weight

(kg)

Dimension

(mm)

MTPS25R*2

6-8

44—60+3

2500-3000

1800-2100

95

1500

2033*1450*2222

MTPS30R*2

8-12

74—90+3

5000-7000

4500-5500

95

1950

2332*1450*2222
